The Magic Formula
2. Deciphering the Voltage Division Formula
Alright, here's the main event: the formula for voltage across a resistor in a series circuit! The key term here is "voltage division." Imagine our coffee line again. The total amount of coffee represents the total voltage supplied by the battery or power source. As the coffee passes each person (resistor), it gets diminished, or "divided," based on how much tax each person demands.
The formula itself is pretty straightforward:VR = VT (R / RT)Where: VR is the voltage across the specific resistor you're interested in. VT is the total voltage supplied by the source (battery, etc.). R is the resistance of the specific resistor you're interested in (in Ohms). RT is the total resistance of the entire series circuit (in Ohms). It's calculated by simply adding up the resistance of all the resistors in the series: RT = R1 + R2 + R3 + ...
So, what does this mean in plain English? It means the voltage across any resistor in a series circuit is directly proportional to its resistance. The larger the resistance, the larger the voltage drop across it. Makes sense, right? The person charging a higher "tax" is going to get a larger portion of the "coffee."
Let's illustrate this with a ridiculously simple example. Suppose we have two resistors in series: R1 = 10 Ohms and R2 = 20 Ohms. The total resistance RT would be 10 + 20 = 30 Ohms. If the total voltage supply (VT) is 9V, then the voltage across R1 would be 9V (10/30) = 3V, and the voltage across R2 would be 9V (20/30) = 6V. Notice that the voltages add up to the total supply voltage (3V + 6V = 9V). This is a crucial characteristic of series circuits!
Putting the Formula to Work: Real-World Examples
3. How the Voltage Division Rule Applies in Practice
Okay, so we've got the formula down. But how does this actually apply to things you might encounter in the real world? Let's say you're building a circuit that needs to dim an LED. LEDs have specific voltage requirements, and exceeding them can fry the LED (and trust me, that's not a pleasant smell). So, you use a resistor in series with the LED to drop some of the voltage from your power source. By carefully choosing the resistor value and using the voltage division formula, you can ensure the LED receives the correct voltage and glows happily without blowing up.
Another example could be in a voltage divider circuit. These circuits are often used to create a specific voltage level from a higher voltage. For instance, you might have a 5V power supply, but your microcontroller needs a 3.3V signal. A voltage divider circuit, using two resistors in series, can effectively "step down" the voltage to the required level. The voltage division formula lets you calculate the appropriate resistor values to achieve the desired voltage.
Even more broadly, understanding voltage division helps you troubleshoot electronic devices. If a circuit isn't behaving as expected, you can measure the voltage across different components and use the formula to identify potential problems. Maybe a resistor has drifted out of spec (its resistance has changed), or maybe a component is drawing too much current, causing an unexpected voltage drop. Knowing the formula gives you a diagnostic tool.
Think about it like a detective solving a mystery. The formula is your magnifying glass, allowing you to examine the clues (voltage measurements) and deduce the culprit (the faulty component) responsible for the electrical crime! Without it, you're just poking around in the dark.
Important Considerations and Caveats
4. Things to Keep in Mind About Series Circuits
While the voltage division formula is super useful, there are a few things to keep in mind. First and foremost, it only applies to series circuits. In parallel circuits (where components are connected side-by-side, like multiple lanes on a highway), the voltage across each component is the same as the source voltage. Don't mix them up!
Second, the formula assumes that the resistors are ideal, meaning their resistance is constant and doesn't change with temperature or current. In reality, resistors do have some tolerance (a range of possible values), and their resistance can be affected by external factors. This means the calculated voltage will be an approximation, not a perfectly precise value. For critical applications, you might need to account for these variations.
Third, the total resistance (RT) must include all the resistance in the series circuit. Don't forget to include any internal resistance of the voltage source itself, especially if it's a battery that's getting old. A weak battery with high internal resistance can significantly affect the voltage distribution.
Finally, remember that voltage division is a consequence of Ohm's Law (V = IR). It's not some magical standalone principle. If you understand Ohm's Law and the basics of series circuits, voltage division will naturally follow. So, don't just memorize the formula; understand the underlying concepts!
Voltage Across a Series: Quick Recap and FAQs
5. Wrapping Up and Answering Your Burning Questions
So, to recap, the voltage across a resistor in a series circuit is determined by the voltage division formula: VR = VT (R / RT). This formula allows you to calculate the voltage drop across any resistor, provided you know the total voltage and the resistance values. It's a fundamental concept for understanding and troubleshooting series circuits.
Remember the "coffee line" analogy? The total "coffee" (voltage) is divided among the people (resistors) based on how much "tax" (resistance) each person demands. A larger resistance means a larger voltage drop.
By using the voltage division formula in series circuit you can use it for creating voltage dividers, dimming LEDs, and diagnosing circuit problems. Keep the caveats in mind — the formula applies only to series circuits, assumes ideal resistors, and requires including all resistance in the calculation. Now, let's tackle some frequently asked questions:
6. Frequently Asked Questions (FAQs)
Q: What happens if one of the resistors in a series circuit burns out?
A: If a resistor burns out (opens), it effectively breaks the circuit. Since it's a series circuit, the current flow stops completely, and the voltage across the burned-out resistor will become equal to the source voltage (assuming no other paths for current). All other components will have zero voltage across them.

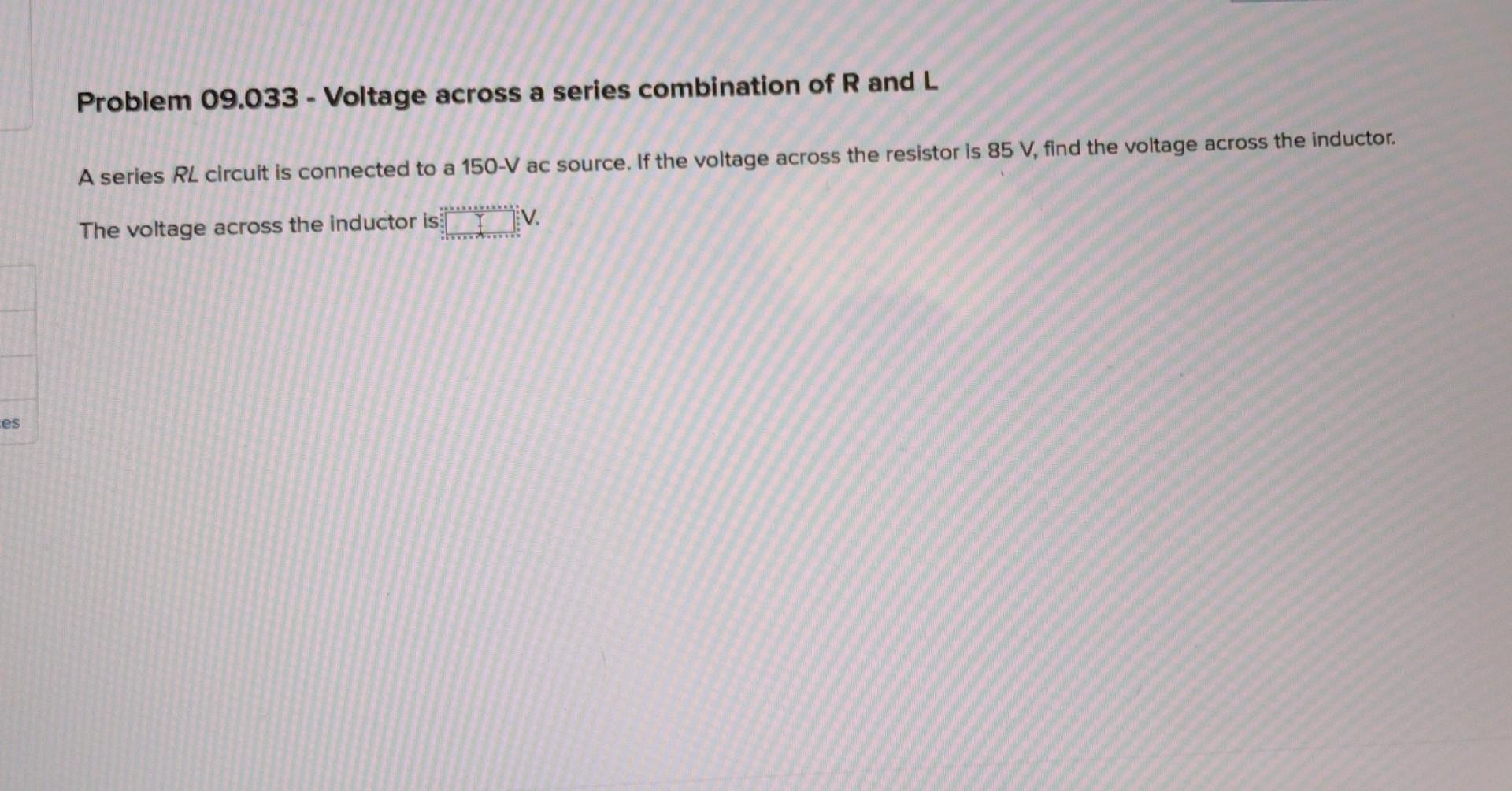

Q: Can I use the voltage division formula for AC circuits?
A: Yes, but with a slight modification. In AC circuits, you need to consider impedance (Z) instead of just resistance (R). Impedance includes both resistance and reactance (from capacitors and inductors). The formula becomes VZ = VT (Z / ZT), where ZT is the total impedance of the series circuit. You'll need to use complex numbers to handle the calculations correctly.
Q: What's the difference between voltage division and current division?
A: Voltage division applies to series circuits, where the voltage is divided among the components. Current division applies to parallel circuits, where the current* is divided among the branches. Remember, in a series circuit, the current is the same throughout, while in a parallel circuit, the voltage is the same across all branches.
